12 Hz, 750 rpm

Type	Frequency	Rounds per minute	Static momentum (max.)	Working momentum (max.)	Centrifugal force (max.)	Weight	Input power	Rated supply current at 3x400V	Rated supply current at 3x500V	Power factor	Effectivity	Ratio of starting to rated supply current
-	Hz	ot/min	kg.mm	kg.mm	N	kg	kW	A	A	-	%	-
AO28	12	690	547	1 094	3 370	37	0,13	0,51	0,32	0,69	67	3,3
AO38	12	690	1 133	2 266	6 990	58	0,27	0,83	0,85	0,61	60	2,7

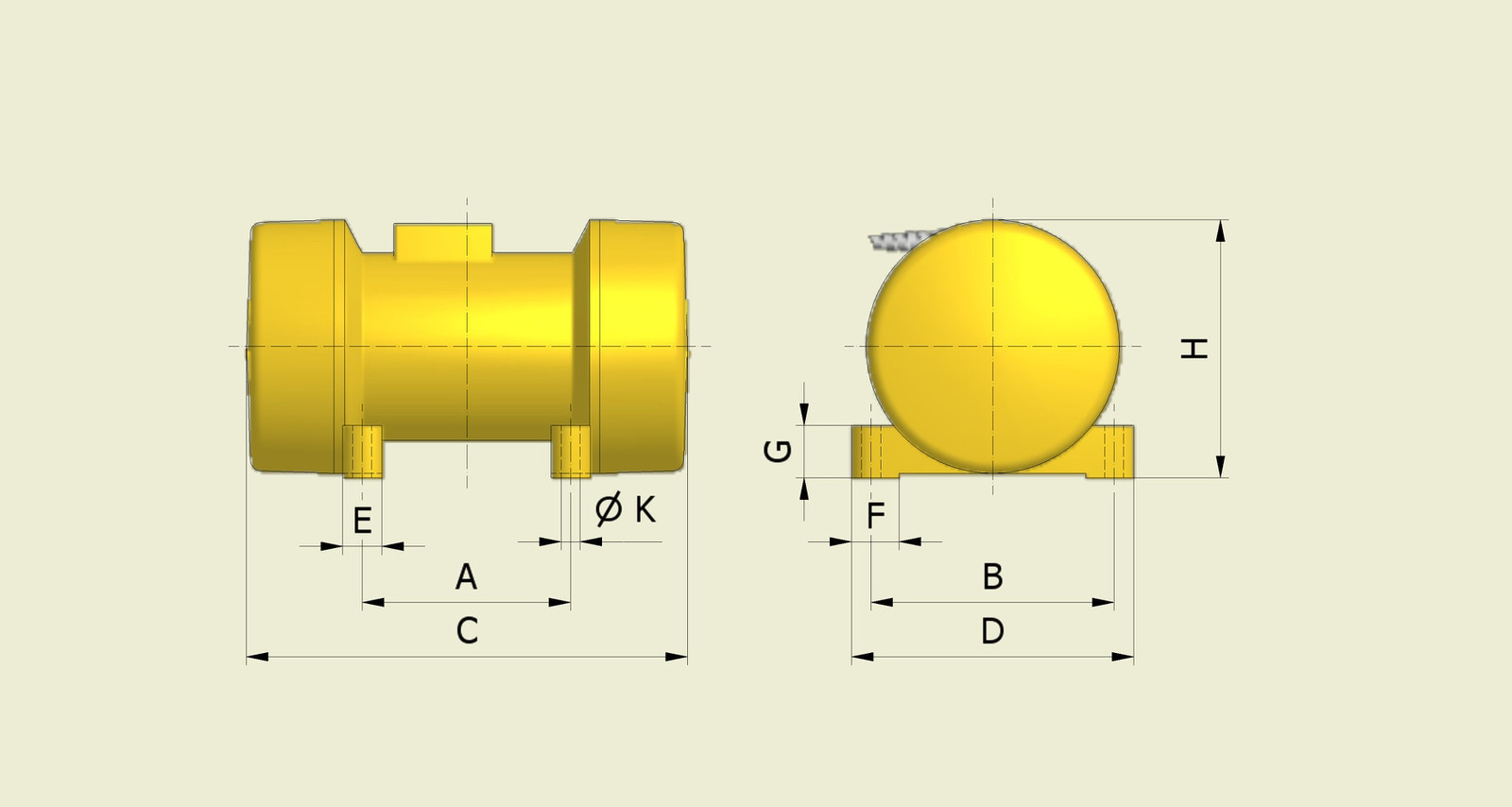

Dimensions

Type

3D

3D

2D

A

B

C

D

E

F

G

H

K

Screw

AO28

120

190

402

226

36

36

45

220

4 x 18

M16

AO38

150

210

502

254

44

44

55

248

4 x 22

M20

All dimensions are in mm.
